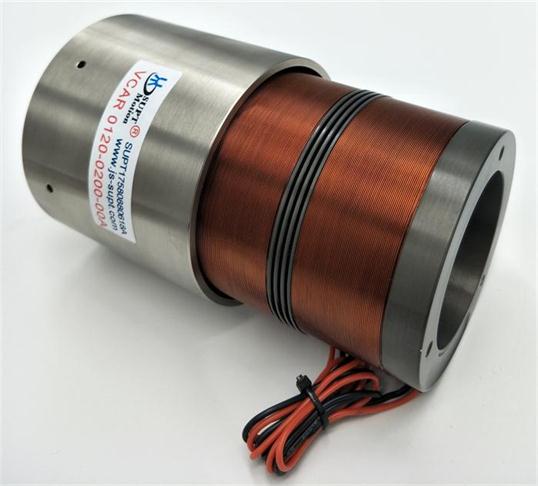

| 直线型音圈电机-VCAR系列 |
VCAR Series
圆柱型音圈电机系列应用相当广泛。这种电机很高的加速率能够产生0.7N-1000N的强大动力，而其行程甚至少于50mm。
该款电机主要应用在医疗、半导体、航空、汽车等领域，包括阀门制动器，小型精密替换测量仪、振动平台以及主动式减振系统等众多方面。市场主要指向医疗、半导体、航空及自动化工业领域。

|
型号 |
顶峰推力 |
总行程 mm |
转子重量 g |
定子直径 mm |
线圈进入长度 mm |
|
VCAR0001-0010-00A |
0.7 |
1.0 |
2.7 |
24.0 |
11.2 |
|
VCAR0006-0039-00A |
6.2 |
3.9 |
7.9 |
20.0 |
17.2 |
|
VCAR0006-0050-00A |
6.2 |
5.0 |
8.2 |
25.0 |
18.2 |
|
VCAR0013-0072-00A |
13.0 |
7.2 |
16.2 |
26.2 |
24.7 |
|
VCAR0015-0062-00A |
15.0 |
6.2 |
14.8 |
33.0 |
25.6 |
|
VCAR0022-0098-00A |
22.0 |
9.8 |
14.3 |
34.1 |
35.0 |
|
VCAR0022-0448-00A |
22.0 |
44.8 |
52.0 |
48.0 |
75.7 |
|
VCAR0032-0050-00A |
32.0 |
5.0 |
48.0 |
40.0 |
41.7 |
|
VCAR0033-0099-00A |
33.0 |
9.9 |
23.5 |
36.0 |
26.7 |
|
VCAR0033-0224-00A |
33.0 |
22.4 |
69.0 |
58.0 |
72.0 |
|
VCAR0035-0105-00A |
35.0 |
10.5 |
91.0 |
50.0 |
67.0 |
|
VCAR0044-0040-00A |
44.0 |
4.0 |
46.5 |
53.0 |
21.2 |
|
VCAR0044-0059-00A |
44.1 |
5.9 |
43.0 |
46.0 |
22.0 |
|
VCAR0044-0075-00A |
44.0 |
7.5 |
38.6 |
31.1 |
35.9 |
|
VCAR0044-0249-00A |
44.0 |
24.9 |
65.9 |
38.1 |
51.3 |
|
VCAR0070-0149-00A |
70.0 |
14.9 |
79.0 |
43.0 |
53.7 |
|
VCAR0087-0062-00A |
87.0 |
6.2 |
45.2 |
43.1 |
34.9 |
|
VCAR0087-0563-00A |
87.0 |
56.3 |
177.0 |
72.0 |
110.0 |
|
VCAR0105-0164-00A |
105 |
16.1 |
150.0 |
60.4 |
40.4 |
|

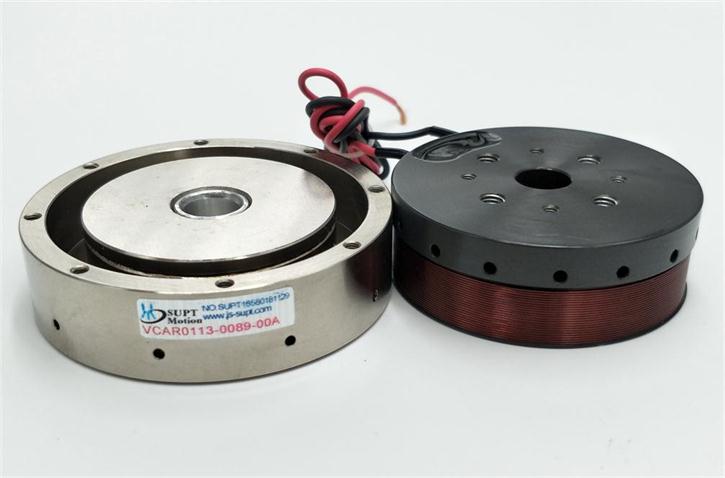

VCAR0113-0089-00A |
113 |
8.9 |
125.0 |
73.0 |
27.5 |
|
VCAR0262-0112-00A |
262 |
11.2 |
285.0 |
71.0 |
64.0 |
|
VCAR0262-0249-00A |
262 |
24.9 |
785.0 |
66.0 |
109.1 |
|

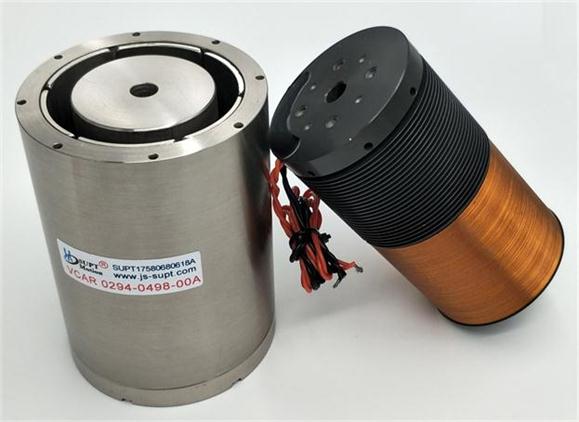

VCAR0294-0498-00A |
294 |
49.8 |
685.0 |
93.0 |
136.9 |
|
VCAR0436-0187-00A |
436 |
18.7 |
648.0 |
80.4 |
91.0 |
|
VCAR0436-0250-00A |
436 |
25.0 |
775.0 |
78.4 |
110.0 |
|
VCAR0436-0373-00A |
436 |
37.3 |
1050.0 |
76.0 |
163.0 |
|
VCAR0980-0249-00A |
980 |
24.9 |
1426.0 |
126.0 |
134.5 |
|

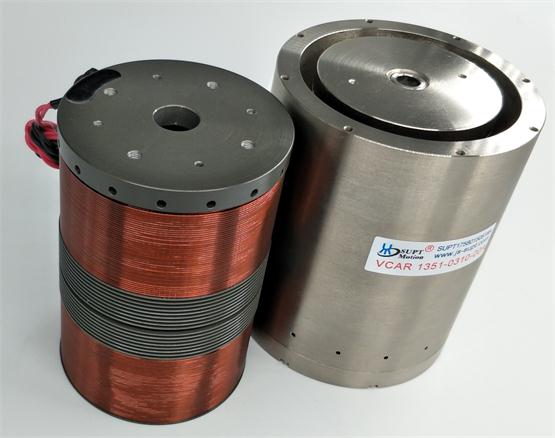

VCAR1351-0310-00A |
1351 |
31.0 |
1071.0 |
110.0 |
143.7 |
|
